White Black Golden Smart Signal Repeater For Dual Band GSM LTE Mobile Network

Product Categories

Shenzhen Jiayi Technology Co., Ltd.

Contact Now

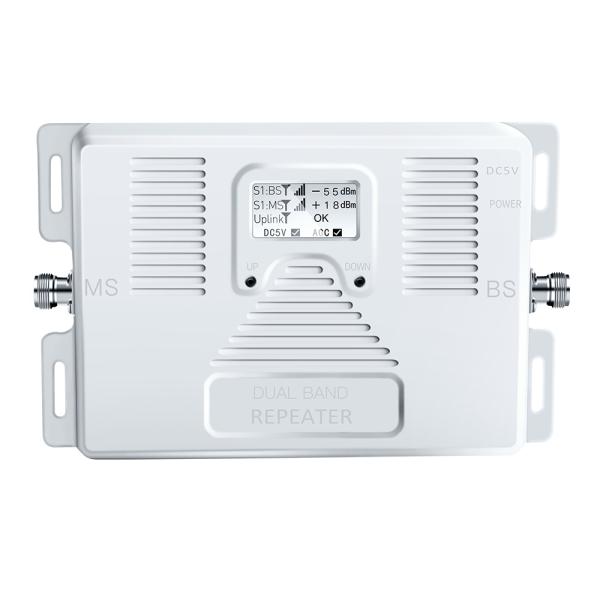

Name: White Black Golden Smart Signal Repeater For Dual Band GSM LTE Mobile Network
Brand: GREEMBLT
Price: 78.60 USD

Model Number : JY-816

Place of Origin : Guangdong, China

Brand Name : GREEMBLT

Packaging Details : Normal Carton Package

Supply Ability : 1000 Piece/Pieces per Week

Price : $78.60/sets 1-9 sets

Type : dual band signal booster

Network : 4g, GSM, 3G, LTE

Product name : Mobile Signal Repeater

Frequency : 900 /1800 MHz or customized

Gain : 70dB±3DB

Frequency customized : Cover all bands customized

Max Output Power : 23dBm±3dBm

Function : Cell Phone Signal Booster

Color : White or Black or Golden available or customized

Coverage Area : 500m2

Package size : 225mmx140mmx32mm

Cellular Networks : 2G/3G/4G Lte

Contact Now

White/Black/Golden Smart Signal Repeater for Dual Band GSM LTE Mobile Network Coverage

White Black Golden Smart Signal Repeater For Dual Band GSM LTE Mobile Network

SPECIFICATIONS Mobile Signal Booser PARAMETERS
	850/1800Mhz	850/2100Mhz	850/AWS	800/900Mhz	850/1900Mhz
	824-849/1710-1785Mhz	824-849/1920-1980Mhz	824-849/1710-1755Mhz	832-862/890-915Mhz	824-849/1850-1910Mhz
Frequency Range	869-894/1805-1880Mhz	869-894/2110-2170Mhz	869-894/2110-2155Mhz	791-821/935-960Mhz	869-894/1930-1990Mhz
(Customers to Choose)	800/1800Mhz	900/1800Mhz	900/2100Mhz	1800/2100Mhz	800/2100Mhz
	832-862/1710-1785Mhz	890-915/1710-1785Mhz	890-915/1920-1980Mhz	1710-1785/1920-1980Mhz	832-862/1920-1980Mhz
	791-821/1805-1880Mhz	935-960/1805-1880Mhz	935-960/2110-2170Mhz	1805-1880/2110-2170Mhz	791-821/2110-2170Mhz
Gain ≥70dB
Automatic gain control (Step Attenuation) 31dB @1dB/Step
MGC(Step Attenuation) 25dB @1dB/Ster
Auto Gain Control 20dB Mir
Output Power 22dBm
≤-15dBm/30kHz
Spurious Emission 9kHz~1GHz:≤-36dBm/30kHz
1GHz~12.75GHz:≤-30dBm/30kHz
Inter-Modulation Attenuation ACPR ≤-38dBc/30kHz(measured under rated output power)
In-band Ripple ≤5dB
VSWR <=2
/0 Impedance 50 Ω
Noise Figure ≤5dB
System Delay ≤5μs
RF Connector(Customers to Choose) N-Type (Female)
Operating Temperature Operation:-10°C~+55°C/Storage:-20°C~+60°℃
Power Supply AC110~220V±20%,50/60Hz,DC5V/2A power adapter
Dimensions 22514032(mm)
Weight ≤1.5kg

White Black Golden Smart Signal Repeater For Dual Band GSM LTE Mobile Network
